sRGB vs. DCI-P3: Why Your Monitor’s Red Looks "Dull" in Color Tests

1. The "Color Container" Paradox: A Real-World Failure Scenario

A common failure observed in content creation workflows involves a designer using a high-end DCI-P3 gaming monitor to create a web banner. In the browser, the "Vibrant Red" they chose looks desaturated and "muddy." This happens because sRGB (Standard RGB) is the narrow, aging container for the internet, while DCI-P3 is the wider, cinema-grade container. A wide-gamut monitor without an sRGB clamp is a liability for web design. It forces every standard image into a neon nightmare. If your monitor's OSD doesn't offer a 'Color Space' toggle, you are flying blind. Professional tools don't just give you more color; they give you the ability to turn it off.

The "dullness" you see is often the result of the GPU trying to fit a wide-gamut signal into a monitor that lacks the spectral purity to render those specific wavelengths of red. Before you blame your eyesight, use the Wide-Gamut Saturation Audit. You must determine if your monitor is physically limited by its phosphors or logically limited by its firmware profile.

2. The Physics of Wavelength: Phosphors and Quantum Dots

The "vibrancy" of a color is determined by the Saturation (Chroma), which physically relates to how narrow the spectral peak of the light source is.

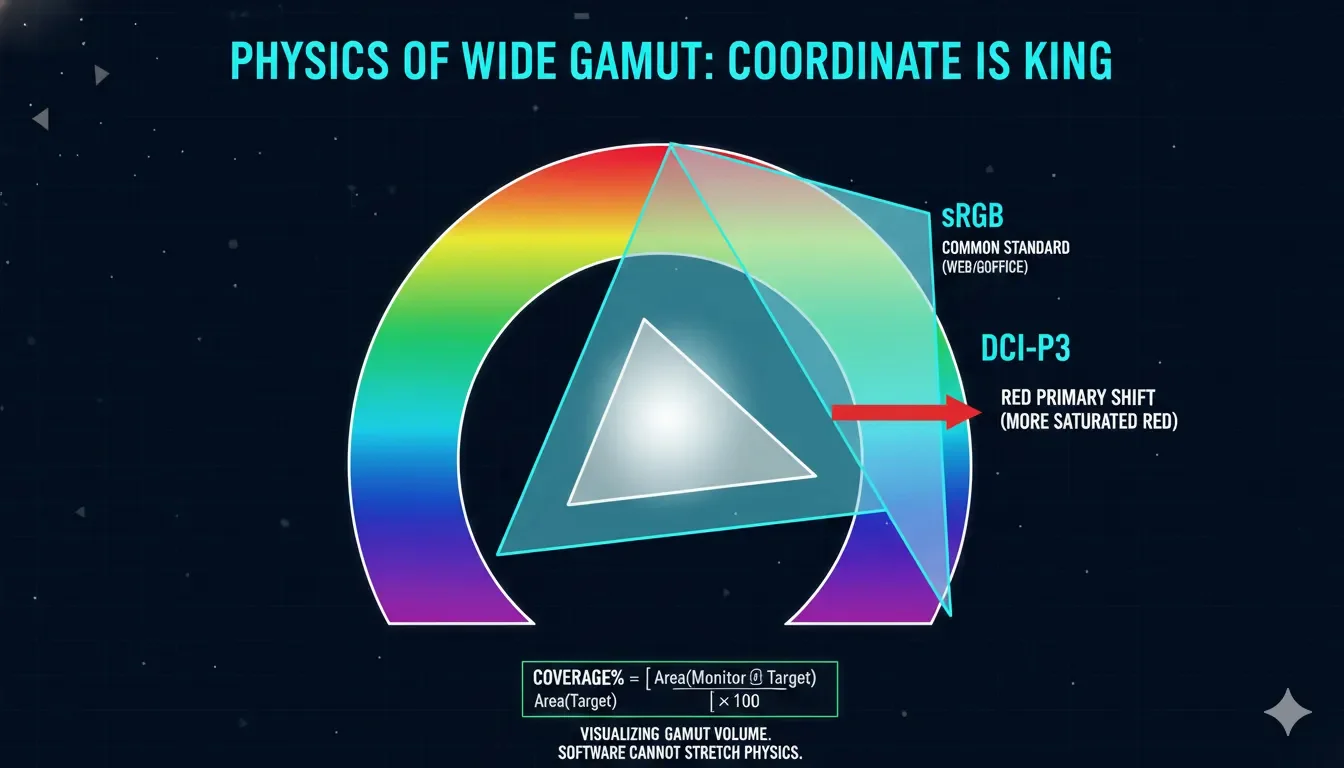

The Gamut Volume Formula

The total color volume a monitor can display is the 3D space defined by the primary R, G, B coordinates in the CIE 1931 space. The coverage percentage is calculated as:

Coverage % = (Area(Monitor Gamut ∩ Target Gamut) / Area(Target Gamut)) * 100

Math check: A monitor can have 150% sRGB volume and still fail to cover 100% of the sRGB gamut if its primary colors are shifted. Volume is a vanity metric; Coverage is the professional reality. Don't be fooled by the bigger number on the box.

• sRGB: Based on the REC.709 standard, designed for CRT monitors. It covers only about 35% of the colors visible to the human eye.
• DCI-P3: Designed for digital cinema, it offers 25% more color space than sRGB, specifically extending into the "Deep Reds" and "Emerald Greens."

Engineering Reality:

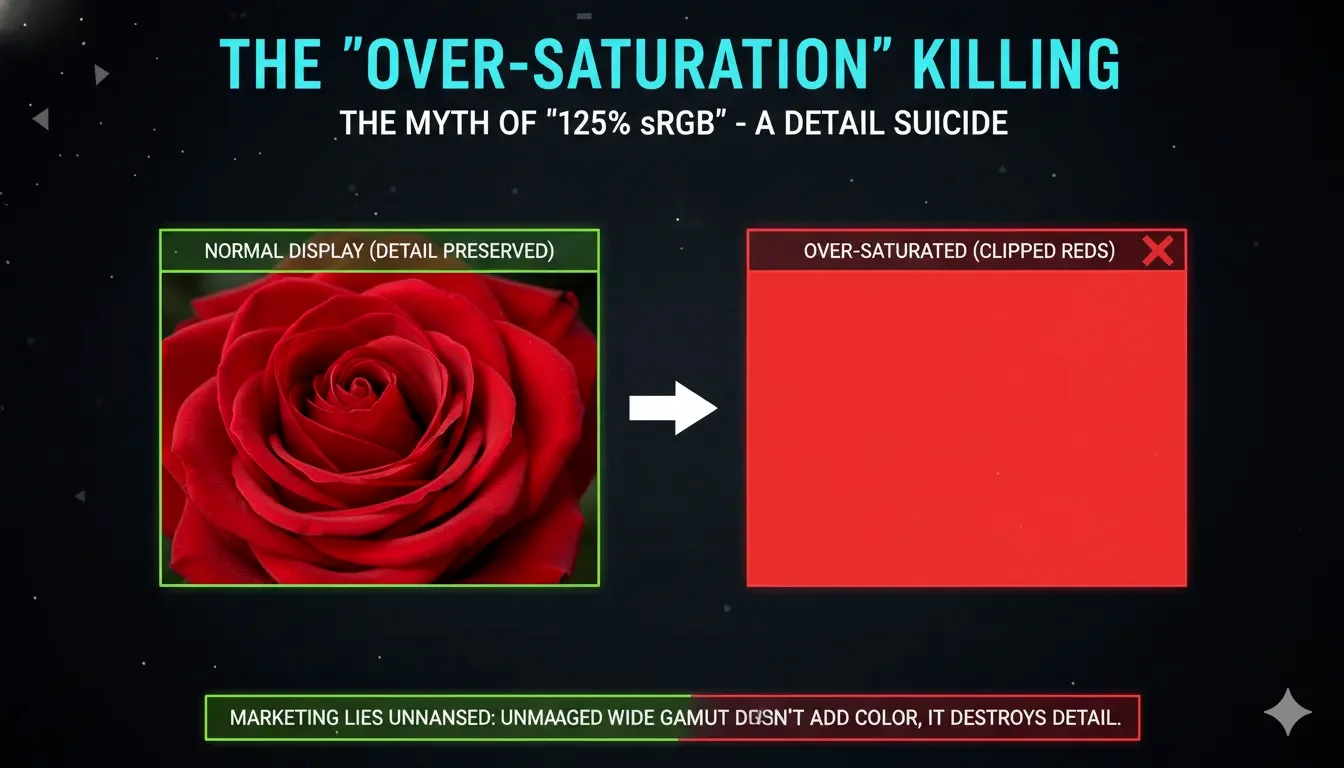

"At ScreenTest.run, we've audited dozens of '125% sRGB' gaming panels. Our lab data confirms the cold reality: these monitors aren't giving you more colors; they are simply mismapping standard colors into a wider space, turning skin tones into 'cooked lobsters.' This isn't professional color performance; it’s a high-saturation filter designed to hide a cheap, uncalibrated backplane."

3. System Logic: The "Red" Problem and Spectral Power Distribution

Why is "Red" specifically the culprit for looking dull? It’s a matter of Spectral Power Distribution (SPD).

The LED Phosphor Limitation

Most standard LCDs use Blue LEDs coated with Yellow Phosphor (W-LED) to create white light.

• The Failure: W-LEDs are physically weak in the red spectrum. If your red looks like a tomato, your monitor is physically incapable of cinema-grade work. Standard W-LED backlights are spectral weaklings in the 600nm+ range. You can't fix a weak phosphor with software. If you didn't pay for Nano-IPS or Quantum Dots, you aren't seeing 'Red'—you're seeing a desperate orange approximation.
• The High-End Solution: To hit true DCI-P3 Reds, manufacturers must use KSF Phosphor or Quantum Dots (QD). These technologies create a sharp, narrow spike in the 630nm wavelength range. If your monitor doesn't have these, your "Red" test will always look orange-ish and dull compared to an OLED or a QD-IPS panel.
• Windows Setup: Ensure "Automatically manage color for apps" is toggled ON in Settings -> System -> Display -> Graphics. This allows Windows 11 to use the ICC profile to "boost" red channels for wide-gamut content.

4. Real-World Diagnostic: The ScreenTest.run Evidence

Our lab tests at ScreenTest.run comparing Standard IPS to Nano-IPS displays revealed the "Oversaturation vs. Accuracy" trap.

Observation Data:

• Scenario A (Native Wide Gamut): Without an ICC profile, a DCI-P3 monitor makes the Red "sRGB" test look too red (neon-like). While "vibrant," this is technically a failure of accuracy.
• Scenario B (The Dull Red): When a monitor is set to "sRGB Mode" in the OSD, it often limits the brightness of the red sub-pixels to prevent over-saturation. Because the backlight's red peak is weak, the resulting red looks greyish-brown.

Note from the Lab:

We tested several "Gaming" monitors that advertised DCI-P3. We found that while they hit the Green and Blue targets, the Red primary was often shifted toward Yellow to save on manufacturing costs. This is "Fake Wide Gamut."

Is your monitor's red a vibrant crimson or a dull tomato? Find out with our pure red screen test.

5. Professional Checklist: How to Get the "Vibrant Red" You Paid For

• Check the OSD Profile: If your monitor is stuck in "sRGB Mode," it is intentionally muting your colors. Switch to "Native" or "User" to unlock the full DCI-P3 range, but be prepared for "Neon" skin tones.
• Identify the Backlight: Look for "Nano-IPS," "Quantum Dot (QD)," or "OLED" in your specs. If your monitor doesn't have these, you can never physically see "True Cinema Red," no matter how much you calibrate.
• The "Pure Red" Test: Open Screentest.run Color Purity and look at the Red screen. If it looks "Tomato Orange," your monitor has a narrow spectral peak. If it looks "Blood Deep Red," you have a high-quality wide-gamut backlight.
• Gamma 2.2 vs 2.4: Set your Gamma to 2.4 if you want colors to feel "deeper" and more saturated in a dark room. 2.2 is standard for office light, but can make wide-gamut colors look "washed out."
• Final Validation: Download the correct ICC Profile from the manufacturer's website. Windows needs this "map" to know that your monitor is capable of the deeper DCI-P3 reds.

Conclusion

(Vibrancy) is not a subjective feeling; it is a Spectral Reality. If your reds look dull, you are either trapped in a narrow sRGB profile or your monitor’s backlight lacks the physical Quantum Dots or KSF phosphors required to hit the 630nm peak. By using ScreenTest.run to audit your color purity and understanding the difference between sRGB (Accuracy) and DCI-P3 (Impact), you can decide whether you need a better calibration or simply a better panel. Stop chasing "Deep Red" on a budget W-LED screen—you can't squeeze blood from a stone, and you can't squeeze DCI-P3 from a standard office monitor.
